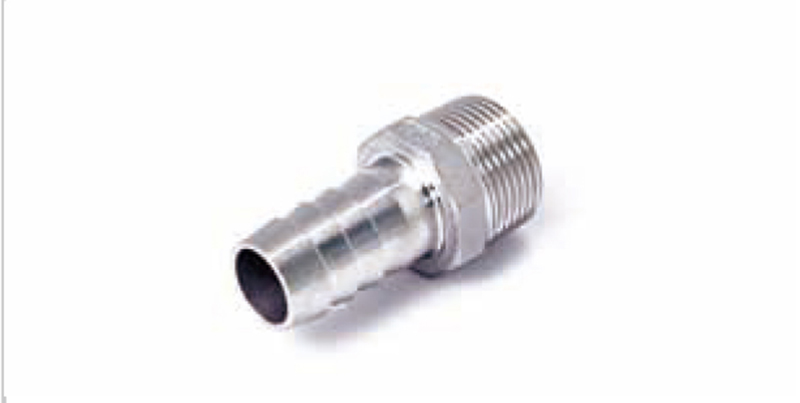

六角水管接头

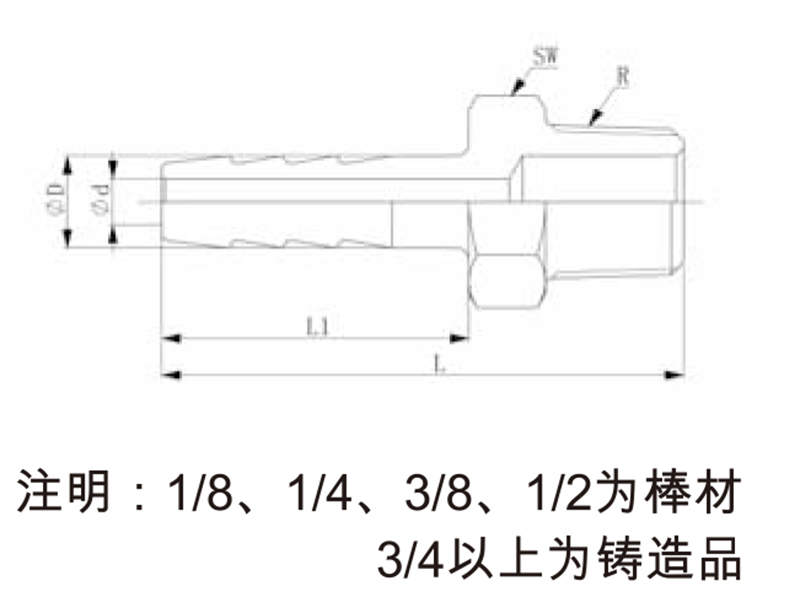

型号	螺纹R	φD	d	L	L1	SW	备注
1/8*6	1/8	6	3	34	20	12
1/8*7	1/8	7	4	34	20	12
1/8*8	1/8	8	5	37	23	12
1/8*9	1/8	9	5.5	37	23	12
1/8*10.5	1/8	10.5	6	39	25	12
1/8*12	1/8	12	6	45	31	12
1/8*12.7	1/8	12.7	6	45	31	14
1/4*6	1/4	6	3	40	23	14
1/4*7	1/4	7	4	40	23	14
1/4*8	1/4	8	5	40	23	14
1/4*9	1/4	9	5.5	40	23	14
1/4*10.5	1/4	10.5	6	42	25	14
1/4*12	1/4	12 8		48	31	14
1/4*12.7	1/4	12.7	8	48	31	14
1/4*14	1/4	14	8	48	31	14
3/8*6	3/8	6	3	44	25	17
3/8*7	3/8	7	4	44	25	17
3/8*8	3/8	8	5	44	25	17
3/8*9	3/8	9	5.5	44	25	17
3/8*10.5	3/8	10.5	6	44	25	17
3/8*12	3/8	12	8	50	31	17
3/8*12.7	3/8	12.7	8	50	31	17
3/8*14	3/8	14	10	50	31	17
3/8*16	3/8	16	10	50	31	17
1/2*8	1/2	8	5	54	31	22
1/2*9	1/2	9	5.5	54	31	22
1/2*10.5	1/2	10.5	6	54	31	22
1/2*12	1/2	12	8	54	31	22
1/2*12.7	1/2	12.7	8	54	31	22
1/2*14	1/2	14	10	54	31	22
1/2*15.2	1/2	15.2	9.5	55.6	28	22	精铸
1/2*16	1/2	16	11	54	31	22
1/2*19	1/2	19	14	58	35	22	精铸
1/2*20	1/2	20	14	56.5	33	22
1/2*21	1/2	21	15	58	35	22	精铸
3/4*16	3/4	16	10.8	57	33	28	精铸
3/4*19	3/4	19	13.6	56	33	28	精铸
3/4*21	3/4	21	15.1	56	33	28	精铸
3/4*25	3/4	25	19	58	33	28	精铸
3/4*26	3/4	26	19	58	33	28	精铸
3/4*27	3/4	27	18.5	66	41	30	精铸
1*21	1	21	14	75	41	38	精铸
1*25	1	25	18	65.5	38	36	精铸
1*26	1	26	18	65.5	38	36	精铸
1*27	1	27	19	62	37	35	精铸
1*32	1	32	25.5	64	37	35	精铸
1*33	1	33	26	69	40	36	精铸
1"1/4*25	1"1/4	25	18	69	40	43.5
1"1/4*34	1"1/4	34	27.1	69	40	43.5	精铸
1"1/2*39.5	1"1/2	39.5	31	75	46	49.5	精铸
2*50.5	2	50.5	41	99.5	63	63	精铸
2*52.5	2	52.5	41.5	102.2	63	63	精铸
2"1/2*65.5	2"1/2	65.5	52	115	77	77.5	精铸
